- Für die Bearbeitung von Aluminium, Nichteisenmetallen, Kunststoff und GFK
- Gut geeignet für große Spantiefen und die Bearbeitung ins VOLLE.
- Sanfter Schnitt durch Achswinkelgeometrie und Spanwinkel
- Schneidlänge 1,5 x D
- Innenkühlung an der Schneide
- SONDERDURCHMESSER AUF ANFRAGE unter thw@thw-shop.at
PKD Schaftfräser Z3 mit IK 1,5xD
178,75 € – 796,91 €
exkl. MwSt. zzgl. Versandkosten
Lieferzeit: 5-7 Werktage

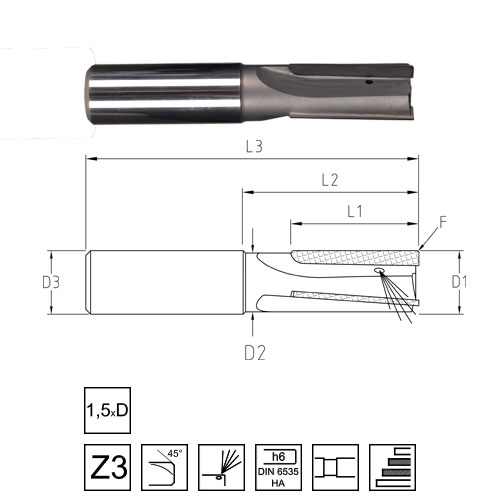

D1 | L1 | D2 | L2 | D3 (h6) | L3 | F | Art.-Code |
---|---|---|---|---|---|---|---|
Ø 4 x 57 | 6.0 | 3.7 | 21 | 4 | 57 | 0.10 | |
Ø 4 x 75 | 6.0 | 3.8 | 39 | 4 | 75 | 0.10 | |
Ø 5 x 57 | 7.5 | 4.7 | 21 | 5 | 57 | 0.10 | |
Ø 5 x 75 | 7.5 | 4.8 | 39 | 5 | 75 | 0.10 | |
Ø 6 x 57 | 9.0 | 5.6 | 21 | 6 | 57 | 0.10 | |
Ø 6 x 75 | 9.0 | 5.7 | 39 | 6 | 75 | 0.10 | |
Ø 8 x 63 | 12.0 | 7.4 | 27 | 8 | 63 | 0.15 | |
Ø 8 x 100 | 12.0 | 7.6 | 64 | 8 | 100 | 0.15 | |
Ø 10 x 72 | 15.0 | 9.3 | 32 | 10 | 72 | 0.20 | |
Ø 10 x 100 | 15.0 | 9.5 | 60 | 10 | 100 | 0.20 | |
Ø 12 x 83 | 18.0 | 11.2 | 38 | 12 | 83 | 0.20 | |
Ø 12 x 100 | 18.0 | 11.4 | 55 | 12 | 100 | 0.20 | |
Ø 14 x 83 | 21.0 | 13.0 | 38 | 14 | 83 | 0.20 | |
Ø 14 x 100 | 21.0 | 13.3 | 55 | 14 | 100 | 0.20 | |
Ø 16 x 92 | 24.0 | 14.9 | 44 | 16 | 92 | 0.20 | |
Ø 16 x 100 | 24.0 | 15.2 | 52 | 16 | 100 | 0.20 | |
Ø 18 x 100 | 27.0 | 16.7 | 52 | 18 | 100 | 0.20 | |
Ø 18 x 150 | 27.0 | 17.1 | 102 | 18 | 150 | 0.20 | |
Ø 20 x 104 | 30.0 | 18.6 | 54 | 20 | 104 | 0.20 | |
Ø 20 x 150 | 30.0 | 19.0 | 100 | 20 | 150 | 0.20 |
